Trailers for Fuel Distributors

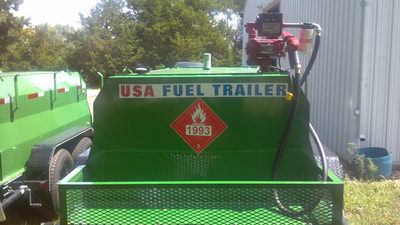

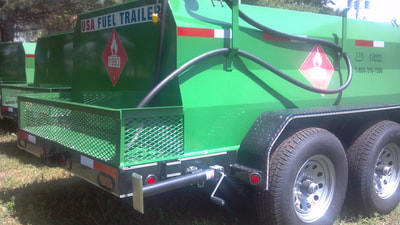

Single or Double Wall Fuel Tanks
|
Fuel Trailers to Meet Federal and Local Regulations
|

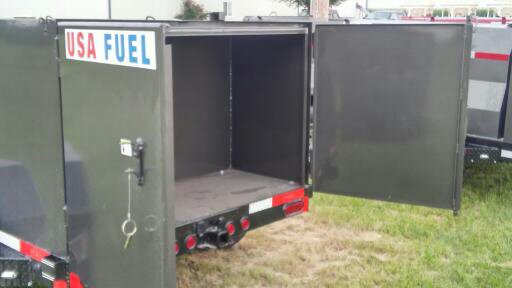

Front and Rear Cabinets
|
|
Fuel Meters Available
|
Rear Stabilizer Jacks Available
|

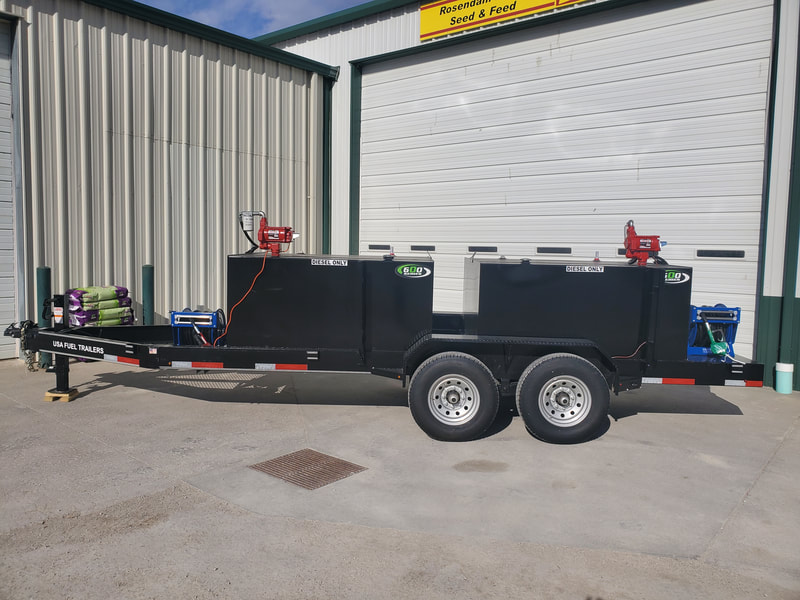

1,200 Gallon Split Tank - 2 X 600 Gallon

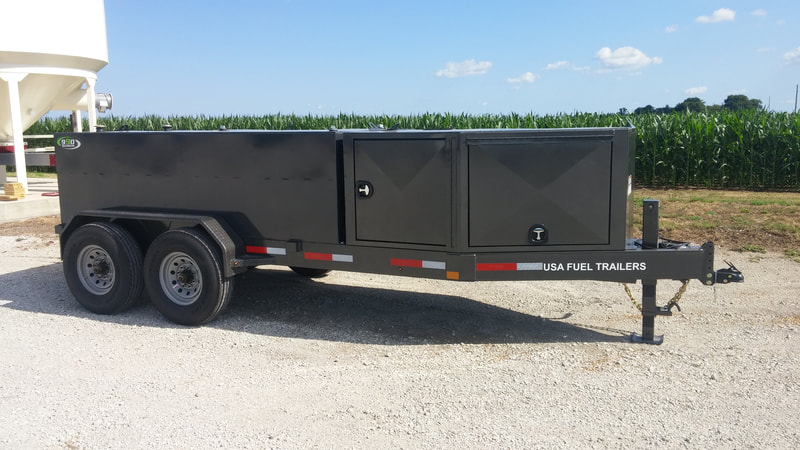

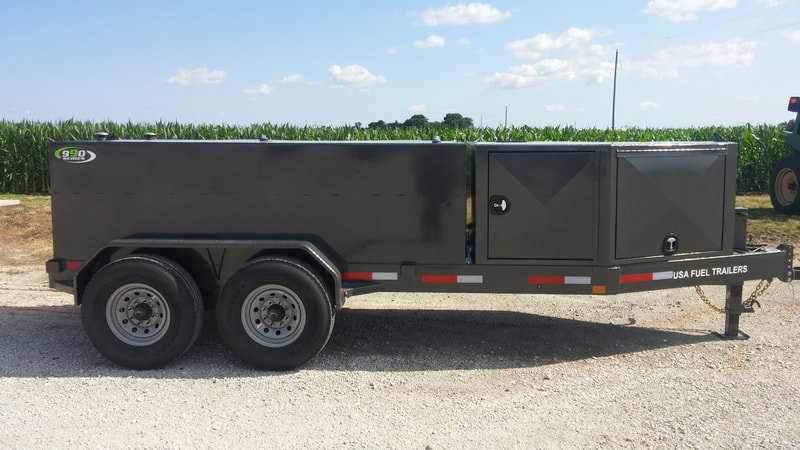

High Capacity - 990 Gallon (Stainless Steel) DEF Distribution Trailer
990 GALLON AAA SQUARE DEF TANK
G.V.W.R. 16,000 LB
AXLE: 2-8,000 LB DEXTER AXLES, 2 ELEC. BRAKES W/3" PADS
TANK: 990 GAL. (5' X 10') SMOOTH PLATE STAINLESS STEEL TANK
FLOOR: FLOOR ON TANK 3/16" THICK
SUSPENSION: SLIPPER SPRING
WHEEL: 16" SILVER MOD 8 HOLE
TIRES: ST235/80/R16 14 PLY RADIAL
FRAME: 8" CHANNEL UPGRADE
COUPLER: 2 5/16" ADJUSTABLE RAM
JACK: 10K DROP LEG SPRING LOADED
FENDERS: DOUBLE BROKE DIAMOND PLATE
BAFFLES: 3 IN THE MIDDLE
PUMP OUTLET: 2" FITTING IN FRONT PASSENGER SIDE ON BOTTOM OF TANK WITH -
SWIRL BASKET
DRAIN: 1/2" DRAIN IN THE BACK CENTERED
FILL PORTS: 2 EACH 2" FILL PORTS ON TOP OF TANK W/ 1 VENT CAP & 1 PLUG
FRONT TONGUE: V SHAPED TOOL CABINET W/2 DOORS ON EACH SIDE (LOCKABLE)
FUEL GAUGE: CENTERED ON TANK FRONT
REAR: TOOL CABINET 36'L X 60"W X 33"H W/FOLDUP REAR DOOR (LOCKING)
REAR: RECEIVER HITCH
REAR: 7 WAY PLUG
LIGHTS: FLUSH MOUNT LED
PAINT: 1 COAT OF PRIMER AND 2 COATS OF POLYURETHANE PAINT
(PAINTED UNDERNEATH)
TANK COLOR: SMOKE CHARCOAL GREY
TRAILER COLOR: CHARCOAL GREY
G.V.W.R. 16,000 LB
AXLE: 2-8,000 LB DEXTER AXLES, 2 ELEC. BRAKES W/3" PADS
TANK: 990 GAL. (5' X 10') SMOOTH PLATE STAINLESS STEEL TANK
FLOOR: FLOOR ON TANK 3/16" THICK
SUSPENSION: SLIPPER SPRING
WHEEL: 16" SILVER MOD 8 HOLE
TIRES: ST235/80/R16 14 PLY RADIAL
FRAME: 8" CHANNEL UPGRADE
COUPLER: 2 5/16" ADJUSTABLE RAM
JACK: 10K DROP LEG SPRING LOADED
FENDERS: DOUBLE BROKE DIAMOND PLATE
BAFFLES: 3 IN THE MIDDLE
PUMP OUTLET: 2" FITTING IN FRONT PASSENGER SIDE ON BOTTOM OF TANK WITH -
SWIRL BASKET
DRAIN: 1/2" DRAIN IN THE BACK CENTERED
FILL PORTS: 2 EACH 2" FILL PORTS ON TOP OF TANK W/ 1 VENT CAP & 1 PLUG
FRONT TONGUE: V SHAPED TOOL CABINET W/2 DOORS ON EACH SIDE (LOCKABLE)
FUEL GAUGE: CENTERED ON TANK FRONT
REAR: TOOL CABINET 36'L X 60"W X 33"H W/FOLDUP REAR DOOR (LOCKING)
REAR: RECEIVER HITCH
REAR: 7 WAY PLUG
LIGHTS: FLUSH MOUNT LED
PAINT: 1 COAT OF PRIMER AND 2 COATS OF POLYURETHANE PAINT
(PAINTED UNDERNEATH)
TANK COLOR: SMOKE CHARCOAL GREY
TRAILER COLOR: CHARCOAL GREY
