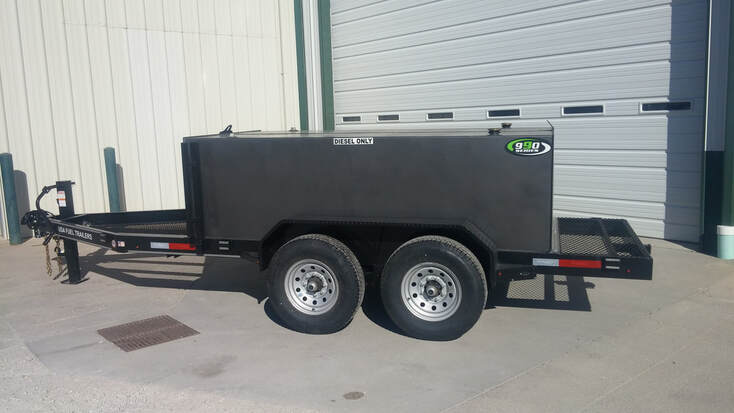

Model 990 Gallon AAA Fuel Trailer
​With 24" Rear Work Platform

Model 990 Gallon AAA - Standard Equipment:​
Note: Equipped as normally ordered for stock.
Trailers may be custom ordered with choice of options and colors.

• 990 Gallon AAA Straight Wall Tank
• Single Wall Tank Construction
• ​Three Tank Baffles Continuously Welded
• 10 Gauge Walls, Double Welded Tank
• 2-inch Lockable Vent Fill Cap ​
• 2-inch Pump Ports Front and Rear - Top Four Corners
• ​2-inch Bottom Fuel Sump
• Top Mounted Fuel Level Sight Gauge
• Removable Tank
• Rear 24" Work Platform
• Rear Receiver Hitch​
• DOT Trailer, 6-inch Channel Frame
• Two 7,000 lb. Dexter EZ Lube Axles with Brakes
• 5 Leaf Spring Suspension
• 16-inch Radial Ten Ply Tires
• 10,000 lb. Jack
• DEF Tank Ready Supports
• 2 5/16-inch Ball Coupler with Adjustable Hitch
• 11 Gauge Diamond Plated Fenders
• Standard Stocking Tank Color: Grey

---

Black Trailer: Red, Green, Yellow, Black or Grey Tanks Available
​​Standard Paint: One Coat Primer - Two Coats Polyurethane

---

​​OPTIONS AVAILABLE:

Single Brake Axle - 6,000 lb. Axles

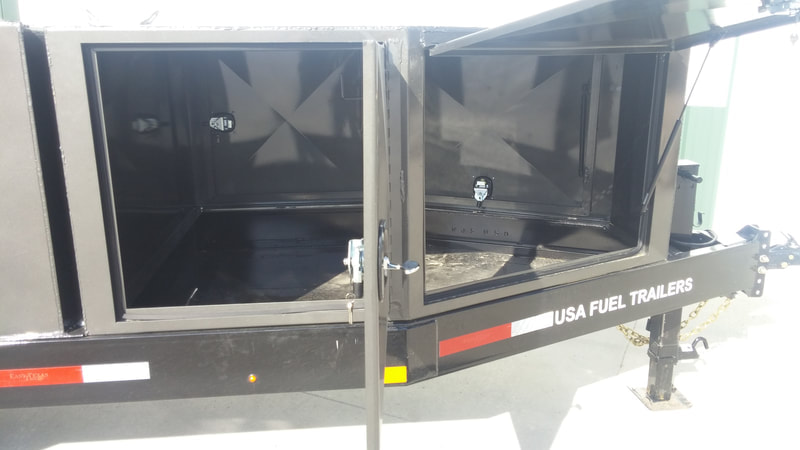

Lockable Tool and Storage Cabinets (Front and Rear)
4-inch Lockable Fill Port - Locking Toolbox
​2-inch Pump Port for Fuel Level Monitoring
​​
Pumping Equipment:
Lockable Toolbox with 12 Volt Solar Kit, Deep Cycle Battery, Plus Auxiliary 110 Volt Charger
 20 or 25 GPM Fill-Rite 12v Fuel Transfer Pump Kit
​ 35 GPM Fill-Rite 110v Fuel Transfer Pump Kit with 5kw Gas Generator
​40 GPM Gas Engine Pump and Hose Reel W/50' x 1" Hose
DEF Pump with Poly or Stainless-Steel Tanks​
Custom Built Fueling Systems

---
