Fill-Rite Fuel Transfer Pumps

Fill Rite Introduces nextec Intelligence

​​Our most popular model is the 25 GPM NX25 DDC. WHAT IS nextec Intelligence™? nextec Intelligence consists of an exclusive array of design advancements, smart technologies and user functionalities that take pump performance to new levels. These include: CONTINUOUS DUTY- The industry's first continuous duty pump for fuel transfer. 12-TO 24-VOLT POWER INPUT- Accepts a range of power from 12 to 24 volts. BETTER EFFICIENCY- Requires a lower amp draw. AUTO POWER DOWN- Includes auto power down after 20 minutes of inactivity to conserve power and prevent excessive wear. SELF-MONITORING- Monitors status and emits Intelligent Tones™ to identify specific pump conditions when attention is required. Up until now, pumping large volumes of fuel, filling large tanks or a number of vehicles meant you had to stop the pump every 30 minutes to let it cool down. ​

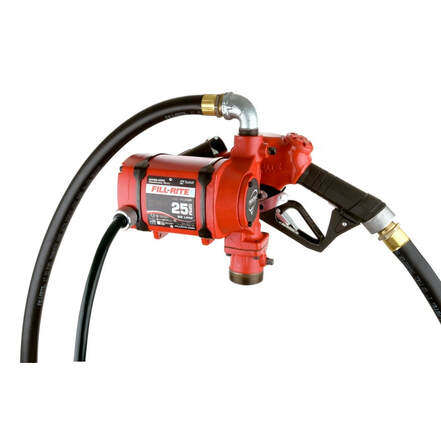

Model: NX25 DDC - 12-24V DC - 25 GPM

  • Continuous duty for fuel transfer
  • 25 gpm / 95 lpm
  • 12 to 24V DC
  • Compatible with diesel, gasoline, biodiesel up to B20, E15, kerosene
  • Intelligent tones - indicate where attention is needed
  • Lower amp draw - save battery power and pump life
  • Lighter - great for mobile tanks, even aluminum
  • Auto power down - after 20 minutes of inactivity
  • Magnetic switch - smooth and field replaceable
  • Removable 20' power cord - convenient and safe
  • Improved suction lift - variable speed motor adjusts to load
  • Includes 1" ultra high flow automatic nozzle
  • Includes 18' x 1" hose
  • UL, cUL, CE, Atex, ICEx Listed

Model: NX25 - 120 AC - 25 GPM
  • Continuous duty for fuel transfer
  • 25 gpm / 95 lpm
  • 120V AC
  • Compatible with diesel, gasoline, biodiesel up to B20, E15, kerosene
  • Intelligent tones - indicate where attention is needed
  • Lighter - great for mobile tanks, even aluminum
  • Auto power down - after 20 minutes of inactivity
  • Magnetic switch - smooth and field replaceable​​​Removable 20' power cord - convenient and safe
  • Improved suction lift - variable speed motor adjusts to load
  • Includes high capacity automatic nozzle
  • Includes 18' x 1" hose
  • UL, cUL, CE, Atex, ICEx Listed

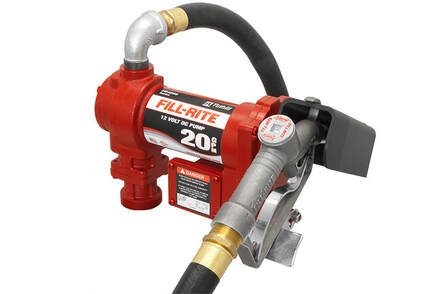

Model: FR4204G - 12V DC - 20 GPM

Professional-grade, industry-standard Fill-Rite pump has an explosion-proof motor with permanent magnet. Steel suction pipe telescopes from 22 in. to 40 in. Features built-in check valve and strainer, hose with static ground wire and thermal overload protection. Manual nozzle included Padlockable. UL listed. U.S.A
  • 20 GPM / 76 LPM
  • UL listed motor
  • Heavy duty cast iron
  • Compatible with Diesel, Gasoline, Kerosene, E15, Biodiesel up to B20
  • 2 year warranty
  • 2 in. threaded base for tank mounting
  • Heavy duty cast iron construction
  • Cast bronze rotor with bronze rotary vanes
  • Built-in strainer
  • 1 in. x 12' ft. hose with static wire
  • Manual nozzle

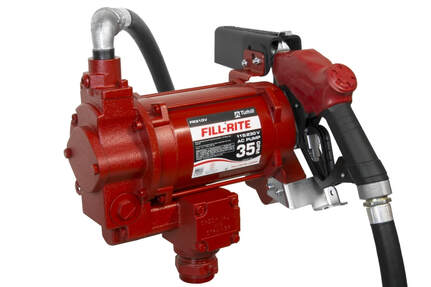

Model: FR310VN - 115/230V AC - 35 GPM

High Flow AC Utility Rotary Vane Pumps Series 300 With a flow rate few pumps can match, this pump provides long life. Explosion-proof UL listed dual voltage 3/4 HP motor (115 and 230 VAC) Motor has sealed bearings, heavy-duty switch and thermal overload protection Built-in junction box Cast iron pump housing with iron rotor and carbon vanes Check valve, pressure relief valve and strainer assembly, Automatic bypass valve, 2 threaded bung for tank openings. Available with optional 18 ft. hose and 1 in. ultra high flow automatic nozzle.  2 Year Warranty.
  • 3​5 GPM / 132 LPM
  • 3/4 HP motor
  • UL/CUL listed
  • Compatible with gasoline*, diesel, B20, E-15, and kerosene
  • Cast iron construction
  • 2 in. threaded bung for tank openings
  • Iron rotor with carbon rotary vanes
  • Self priming
  • Check valve, pressure relief
  • 2 year warranty
  • Pictured with optional 18' hose and 1" ultra high flow
    automatic nozzle

Fuel Meters

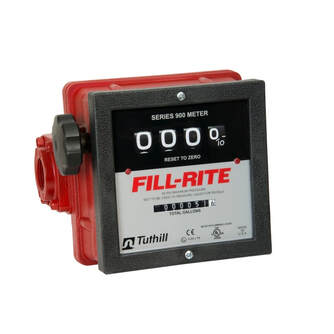

​MODEL 901C - Fill-Rite's 4-wheel mechanical flow meters
​are designed to meet the demands of applications that require accurate and dependable fuel monitoring. With rugged construction, easy-to-read numbers, and mounting flexibility, mechanical meters can be field calibrated for the utmost accuracy. Made in the USA.


​MODEL 806C - Fill-Rite's 3-wheel mechanical flow meters are designed to meet the demands of applications that require accurate and dependable fuel monitoring. With rugged construction, easy-to-read numbers, and mounting flexibility, mechanical meters can be field calibrated for the utmost accuracy. Made in the USA.
​

​MODEL TT10AN - Accurate within 1%, Tuthill's TT10 in-line digital turbine meters set the standard for accuracy, safety, and ease of use. With factory presets for 18 fluids, the TT10 series has more safety approvals than any other meter in its class. Made in the USA.
